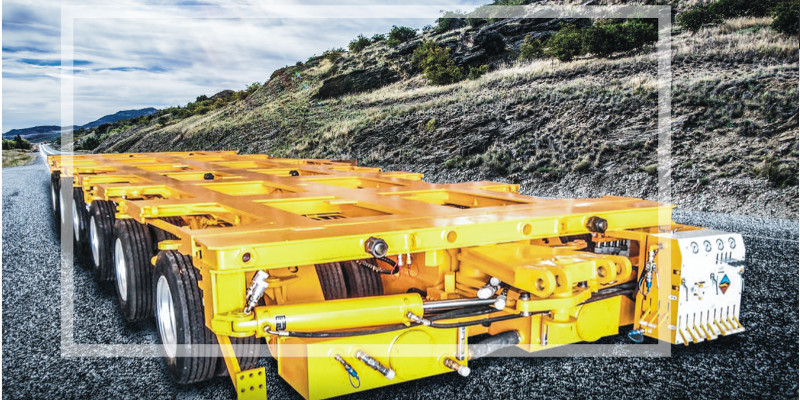

HYD STEEREABLE MULTI AXLE TRAILER
Suitable for heavy & long structural loads, Turbine Blades, etc. and specialised applications. Multi axle versions.
We offer an exceptional range of Hydraulic Modular Front Axle, which is designed with all steel structure material such as alloy steel of grade ST 52.3. While designing these products, we
make sure that all the quality parameters are duly followed for enhancing the product quality. Our clients can avail these products at cost-effective prices along with customization.
Wheel Rim:
7.50 x 20. MAKE-WHEELS INDIA/KALYANI/AL
Tyre:
MAKE-JK/CEAT/APOLLO/CONTINENTAL.
Painting:
One coat of primer and one coat of finish PU paint with colour of customer choice.
Surface Preparation:
Surface shall be cleaned by shot blasting followed by painting which confirms ASTM B117.2011.
Other Fitments:
Fitments as per CMVR.
Suspension:
13T/15T/16T/18T capacity leaf spring suspension with load equalizing brackets. MAKE-YORK/JOST/BPW/FUWA/AAT.
Axles:
13T/16T/18T Axle shall be provided. MAKE-YORK/JOST/BPW.
Electrical:
24 V DC electrical include tail lamp, brake lamp and direction Indicator lamps fitted at rear end of trailer. Side marker lamps shall be provided on both sides.
Brakes:
Wabco Brake System.
Chassis:
Higher 'I' beams section, bottom plate 20 mm, top plate 12 mm, section plate 8 mm. All cross members and side channels are press bended inn ST52 plate Available in checker plate and
without checker plate. All pin material - EN-19 MUSCO All bushes material - Phosphorous Bronze Arms tapper roller bearing - timken Italy. Oil seal - pioneer.
