Certified By
ARAI
AUTOMOTIVE RESERCH ASSOCIATION OF INDIA

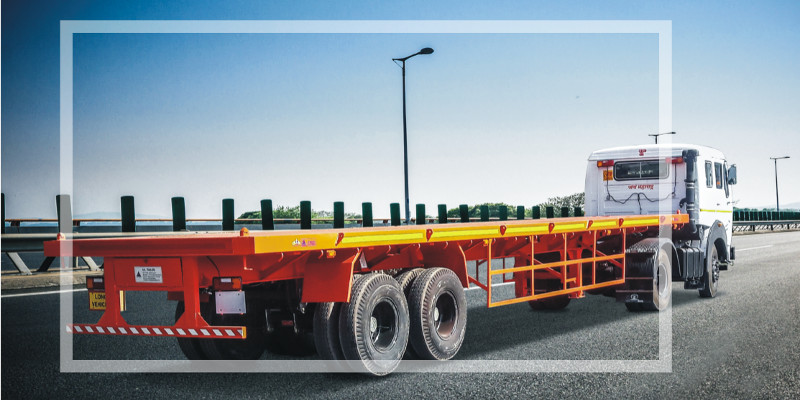

2 AXLE FLATBED TRAILER
Suitable for containers, steel coils or specialised applications. Both tandem and tridem axle versions.
Payload Capacity
23.27T
Unladen weight of trailer
6.3T
Gross Laden weight of trailer
35.2T
Overall length of trailer
12300+-10mm
Overall width of trailer
2590 +- 10
Unladen height of trailer at rear
1550 +- 50mm
Landing Leg
Two speed landing leg shall be provided at the front end.
King Pin
2” king pin equivalent to IS : 6763 Part I provided.
Wheel Rim:
7.50 x 20. MAKE-WHEELS INDIA / KALYANI / AL.
Tyre:
10.00 x 20 - 16 PR. MAKE-JK/CEAT/APOLLO/MICHELIN/CONTINENTAL.
Painting:
One coat of primer and one coat of finish PU paint with color of customer choice.
Surface Preparation:
Surface shall be cleaned by shot blasting followed by painting which confirms ASTM B117.2011.
Other Fitments:
Fitments such SUPD, RUPD, TOOL BOX, reflectors on both sides and rear shall be provided as per CMVR.
Suspension:
13T/15T/16T/18T capacity leaf spring suspension with load equalizing brackets. MAKE-YORK/JOST/BPW/FUWA/AAT.
Axles:
13T/16T/18T Axle shall be provided. MAKE-YORK/JOST/BPW/FUWA/AL/TATA.
Electrical:
24 V DC electrical include tail lamp, brake lamp and direction indicator lamps fitted at rear end of trailer. Side Marker lamps shall be provided on both sides.
Brakes:
Wabco twin line ABS air brake system coupled to tractor brake system. Trailer brakes are actuated from tractor. T24 brake chamber shall be provided on all axles. Parking brake shall
be pneumatically actuated.
Chassis:
All steel welded construction. 2 nos Main longitudinal members are high strength, lighter weight, Parallel flange Beam of IS2062 (or) Equivalent grade steel running along full length of the trailer. Cross members - Rolled or Folded of material IS-2062/ST-52 are positioned at suitable locations. 4/8/12 nos of twist lock shall be provided to suit 20 & 40 feet container.
